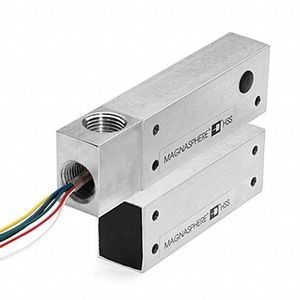

• UL Certified for Class 1 Div 2 All Groups A, B, C, D Environment
• #E-HDZB176/24 Pull Side Mount / #E-HD176/24 Push Side Mount (must be specific for UL Certification)
• Only Singles Available (use two for double door applications)
• Approx. size 10 ½” x 2” x 2”
• Holding Force 600lbs. at 24VDC - 324lbs. at 12VDC
• 0.50 Amps - 12VDC or 0.25 Amps - 24VDC
• Built-In Spike or Surge Suppressions
• Satin Anodized Aluminum Finish
• Functionality for utilization as an explosion proof door contact switch - Form "C" contact
• The only UL (Underwriters Labs) approved explosion proof maglock
• Please allow for lead time of approximately 2 weeks on this item

Available exclusively from Erich Industries, DoorSensors.com Division

Retail Price - $1610 DoorSensors.com Price - $1190

Order 10 or More at $1090 each
Clean UL Power Supply 24VDC $268

BEA’s Falcon EX combines a microwave activation sensor with an explosion-proof / flame-proof housing, which is ideal for use in unique environments such as chemical manufacturing, petroleum refining and agriculture. The Falcon EX can be mounted from 11.5 feet to 23 feet to fit any industrial application. For lower mounting heights, BEA’s Falcon EX XL can be mounted from 6.5 feet to 11.5 feet. The Falcon EX Wide is available for wide detection fields, with a mounting height range of 11.5 feet to 21 feet. The explosion-proof / flame-proof housing is a NEMA 4X, water-proof rated enclosure designed as an IP66 housing. This housing achieves UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III*. Perfect for explosion proof request to open applications.

* Adalet / Scott Fetzer Co., UL Listing #E81696

• Bidirectional, unidirectional approach and unidirectional depart microwave detection options
• Remote control programming enables user to quickly and safely make changes from the ground
• Six modes of detection filtering are available for microwave immunity, as well as pedestrian and parallel traffic rejection
• Explosion-proof / flame-proof housing weighs in at just 13 pounds

Retail Price - $1499 DoorSensors.com Price - $1161.20
Easy Programming Remote Control $49

Designed for explosive environments, the rugged IRB-EXP photocell is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP will work with any control board that accepts dry contact on the input. The easy-to-install IRB-EXP is used with garage doors, rolling doors, parking barriers and other equipment located in explosive environments.

• NEMA 4 and 7 housing.
• NEC Class I, Groups B, C & D, Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC.
• Copper free Aluminum with Epoxy finish.
• Potentiometer range adjustment to allow more precise tuning to site.
• Through beam design is not affected by shiny surfaces.
• Modulated infrared to reduce the effect of sunlight, fog, rain, dust and dirt.
• No focusing lens.
• Please allow for lead time of up to 4 weeks on this item.

Retail Price - $1550 DoorSensors.com Price - $942

Our E-2800T Series magnetic contacts are designed for High Security hazardous environments. The rugged die-cast aluminum housing with conduit fittings meets UL requirements for hazardous locations. The contacts are balanced, triple-biased SPDT switches that make defeat with external magnets virtually impossible. The contacts feature tamper circuits that are actuated by removal of the face plate or by introduction of an external magnet. The terminals are located inside the housing providing additional protection from tampering or accidental shorting. Optional features include pry tamper loop for alarm in case of contact removal, current limiting device for circuit protection, and a housing approved for Class 1 Group B and Class III environments. Please note 1-2 week lead time.

• Balanced, Triple-Biased, SPDT Switches Make Defeat w/External Magnet Virtually Impossible
• Switch Features Tamper Switches Actuated by Removal of Faceplate or Introduction of External Magnet

Retail Price - $786 DoorSensors.com Price - $561

BEA’s Phoenix EX combines a microwave activation sensor in an explosion-proof / flame-proof housing, which is ideal for use in unique environments such as chemical manufacturing, petroleum refining and military facilities. The Phoenix EX is designed to detect within a desired area for security, warning indication and automation. When tied into a security system, the Phoenix EX offers a monitoring feature via the end-of-line resistors. These resistors provide unique output states, which allow differentiation between an activation signal and an interruption in functionality due to tampering of the device. The explosion-proof / flame-proof housing is a NEMA 4X, water-proof rated enclosure designed as an IP66 housing. This housing achieves UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III***.

***Adalet / Scott Fetzer Co., UL Listing #E81696

• Bidirectional, unidirectional approach and unidirectional depart microwave detection options
• Integrated tamper alert switch and end-of-line resistors
• 11-pound, explosion-proof / flame-proof housing
• Tilt adjustment angle: -90° to +30° in elevation
• Phoenix EX models available for lower mounting applications 7' to 11.5 and extended width pattern.

Including Explosion Proof Housing:
Retail Price - $2699 DoorSensors.com Price - $2086

Hubbell Killark Seal-XMTM factory sealed push button stations are used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in explosion proof areas due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings. Applications include petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards exist. Factory sealed universal contact blocks so external sealing fittings typically not required reducing installation time and cost. Also, no seal plate between the electrical device and back box allows direct wiring to contact terminals. Hazardous Rating: Class I, Division 1&2, Groups B,C,D Class I, Zone 1&2, Groups IIB, IIA. Dead-End or Feed-Thru versions available. Please allow for lead time of up to four (4) weeks on this item. (FXCS-1B1-M, FXCS-4B1-M, FXCS-2B1-M, FXCS-5B1-M, FXCS-1B4-M, FXCS-4B4-M, FXCS-2B4-M, FXCS-5B4-M)

Single Push Button Retail Price - $647 DoorSensors.com Price - $563
Double Push Button Retail Price - $798 DoorSensors.com Price - $691

1EBX
• Explosion Proof NEMA 7 & 9,
• One Button Control
• H 6-1/8", W 3", D 4-3/8"
• Please allow for lead time of up to 10 days on these items.

1EBX - DoorSensors.com Price - $391

2EBX
• Explosion Proof NEMA 7 & 9,
• Two-Button Control,
• OPEN-CLOSE
• Please allow for lead time of up to 10 days on these items.

2EBX - DoorSensors.com Price - $414

3EBX
• Explosion Proof NEMA 7 & 9,
• Three Button Control,
• OPEN-CLOSE-STOP
• Please allow for lead time of up to 10 days on these items.

3EBX - DoorSensors.com Price - $436

Designed for hazardous locations

• Heavy cast NEMA type 7 enclosure
• Conforms to Class I, DIV. I and II, Group B, C, D, E, F and G
• 2" diameter push button silkscreened with black epoxy ink
• One normally-open and one normally-closed contact
• Contacts rated 5A @ 35VDC or 120VAC
• Pipe threat 1/2-14 NPT
• UL and ULC approved for hazardous locations
• Push buttons can be customized

MODEL DESCRIPTION:
EXP-1 Momentary action switch, "PUSH TO EXIT"
Retail Price - $1904 DoorSensors.com Price - $1352

EXP-15 Momentary action switch, "PANIC"
Retail Price - $1956 DoorSensors.com Price - $1378

EXP-2 Latching action switch, "PUSH TO EXIT"
Retail Price - $1904 DoorSensors.com Price - $1352

EXP-25 Latching action switch, "PANIC"
Retail Price - $1956 DoorSensors.com Price - $1378

The explosion proof pull station is a high-quality, die-cast metal, explosion-proof manual fire alarm pull station available in either single or dual action configurations. It is approved for NEMA-4X applications and is UL Listed and Factory Mutual Approved for use in Class I, Groups B, C, and D; Class II, Groups E, F, and G; and Class III hazardous environments. It has a DPDT switch with terminal strip connections.

The single-action station is operated simply by pulling the pull handle on the front of the station as far down as it will go, at which point the handle locks into place, and is easily visible from up to 50 feet. The activated station is reset by opening the station with a key, placing the handle in the normal, upright position, and re-locking the station. Optional dual action Lift and Pull or Break Glass adapter offer added security against unwanted activation without complicating the overall pull station operation.

Retail Price - $882 DoorSensors.com Price - $567

• Parker Pneumatic Switching Controls
• Input/Output Fittings for 5/32" Tubing
• PVC Enclosure 4.5" x 4.5" x 4.5"
• Surface Mount
• Please allow 1 week lead time for this custom built item

DD-4535 - DoorSensors.com Price - $278
Electro-Pneumatic Module $156

Available exclusively from Erich Industries, DoorSensors.com Division

CP-2X
• Explosion Proof NEMA 7 & 9,
• Ceiling Pull Switch, DPST
• H 6-1/8", W 3", D 5"

CP-2X - DoorSensors.com Price - $331
